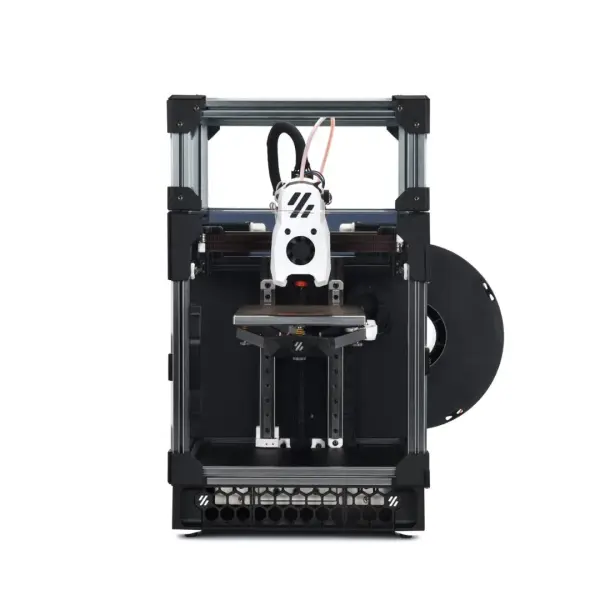

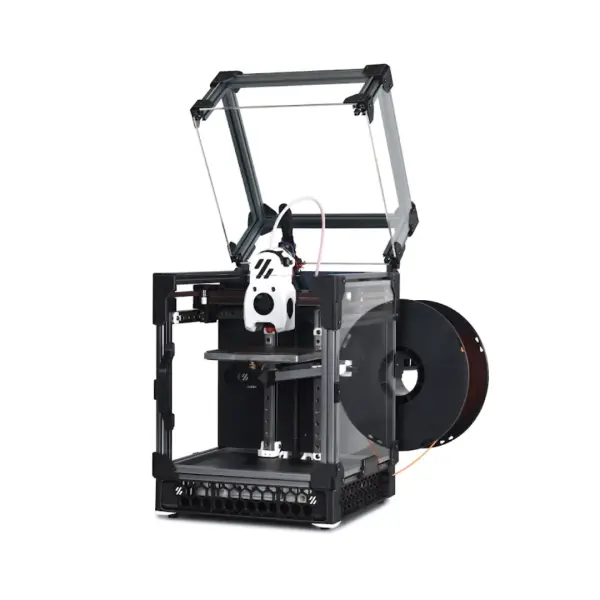

LDO VORON V0.2-S1 A+ PRINTER KIT : UNLEASH YOUR VORON EXPERIENCE

Discover the Next Level of 3D Printing with LDO Voron Printer Kits!

MASTER HIGH-SPEED PRINTING WITH A VORON V0.2 3D PRINTER

With an array of upgrades and innovations, the LDO Voron V0.2-S1 A+ Printer Kit is tailored to enhance your printing quality, convenience, and overall enjoyment. At 120x120x120mm build volume, the Voron V0.2 is a tiny masterpiece of engineering for fast printing at incredible efficiency. Just like its cousin, the Voron V0, this printer is the perfect work desktop companion. Print ABS for easy and efficient prototyping as smooth as butter with a 250mm/s print speed.

When it comes to building your glorious Voron super sidekick, LDO kits are one of the best complete constructions you can get. Key features include pre-cut wiring, stainless steel linear rails, quiet printing with stepper drivers, multiple nozzles, and a polyamide film printbed heater. The LDO V0.2-S1 RevA+ (also known as the V0.2R1) Voron 0.2 3D Printer Kit offers additional features and upgrades:

Features:

Stainless Steel Linear Rails & HIWIN X Rails - No more worrying about rusty rails. Remember to properly lubricate your linear rails! In addition, the LDO team has thrown in a high quality HIWIN linear rail for the X axis.
E3D Revo Hotend - The LDO team have collaborated with folks at E3D to bring the Revo Voron hotend to their Voron kits! These hotends come with custom coloured blue heatsinks!
Picobilical PCB - Picobilical is an in-house redesign of Timmit's V0-Umbilical Mod that is essentially a secondary mainboard! Picobilical greatly simplifies wiring and frees up extra ports on the mainboard.
Linear Rail Mounting Bar - The kit includes custom 7H size linear rail mounting bars to secure the linear rails onto the extrusions, (no need to fiddle with tiny m2 nuts on a thin plastic part)
Brass Heatset Insert Tool - The LDO team included a custom machined brass tip for your soldering iron, use it to install heatset inserts with ease! Check here for more information.
Pre-cut & Pre-wired - The kit includes all necessary wiring: cut to just the right length and pre-crimped or soldered to their respective parts. See our supplementary wiring guide here.
Threadlocked- All set screws (grub screws) come precoated with threadlocker to prevent loosening of critical components.
2mm Drill Bit - Metric drill bits may not be very common in some parts of the world, so the LDO team included one. Use it to ream the filament path in your printed extruder parts.
Kirigami Bed Holder - For the sake of easier assembly, maintenence and wiring, the LDO team included the famous Kirigami bed holder mod by Christoph Mueller in all their kits.
Slide-in nuts - The LDO team included these custom designed nuts in their kit so you don't have to pull any hairs out when you discover you forgot to preload a hex nut. It also makes modding on the V0 a breeze.
Pre-assembled Build Plates - The build plates come pre-assembled with 100W polyimide heaters that heater faster and report more accurate bed temperatures.

200W Power Supply - The kits come with a 200W power supply instead of the standard 150W PSU.

While the LDO Voron V0.2-S1 RevA+ Printer Kit is packed to the brim with the Electronic and Mechanical parts for the build, it is on you to print the plastic casings using provided STL and CAD files . This gives you the flexibility to express your creative side with your choice of colours and maybe even create a two-tone printer build. Also, this means you are always printing the most up to date parts as released on the Voron Design GitHub. We recommend ABS as the best material to use for your Voron V0.2 Printer parts which take up just shy of 1kg of filament for all prints.

ADDITIONAL RESOURCES AND GUIDES

Printed Parts Guide (LDO supplement) - Are you planning on printing parts before the kit arrives? Read the LDO supplementary print guide to see which parts to print/replace/omit.
Wiring Guide - LDO created this supplementary wiring guide to make wiring your printer a breeze.
Tuning Guide - LDO highly recommends reading over this very detailed tuning guide by Ellis to help print out the best possible looking parts
BOM - View the Official LDO Voron V0.2-S1 RevA+ BOM page for a full parts list and additional information to help your build.
Discord - Take advantage of the Voron Discord Community and our own DIY Discord Community. Both communities are very active with plenty of helpful Makers to meet.
Printed Parts Supply - Since printed parts are NOT included with the kit, it is recommended to get them from through the Voron Print It Forward program if you are unable to print them for yourself. They will provide the essential parts for a very reasonable cost to get your printer working.
Full 3D Model of Printer - Download Fusion 360 and get a free license to view the 3D model of the printer. The 3D model is a very useful reference if you find anything in the manual ambiguous or unclear.
Mod to Print - Use the No-Drop Nut mod by zruncho. This mod helps secure hex nuts within the extrusion.
Videos - Check out Nero 3D's Youtube channel. He has a ton of videos on assembling Voron printers.
Serial Number - Get a serial number once you finish building your Voron.

An Extra Tip - The Z axis cable chain may include more links than needed. When installing, move the build plate to the top most position, then fit the cable chain, and remove links as needed. Beware, if your cable chain is too long, it may interfere with Z travel!

VORON V0.2 PRINTER - TECHNICAL SPECIFICATIONS (ONCE ASSEMBLED):
Brand	– Voron Designs
Model	– Voron 0.2 (v0.2-S1 A+)
Printing Technology	– FDM
Build Volume	– 120x120x120mm
Actual Desk Space Taken	– 300x280x370mm
Build Plate Assembly	– Aluminium Build Plate – LDO Flexi Plate, Textured
Layer Height	– 0.05mm - 0.3mm
Filament Diameter Compatibility	– 1.75mm
Extruder Style	– Direct Drive
Stock Hotend Assembly	– Revo Voron Hotend
Maximum Hotend Temperature	– 300°C
Print Platform Max Temperature	– 110°C
Max. Print Speed	– 250mm/s
Max. Travel Speed	– 300mm/s
Power Supply	– Mornsun Power Supply, 200W, 24V
Controller Boards	– Raspberry Pi 4 (for Firmware Control)

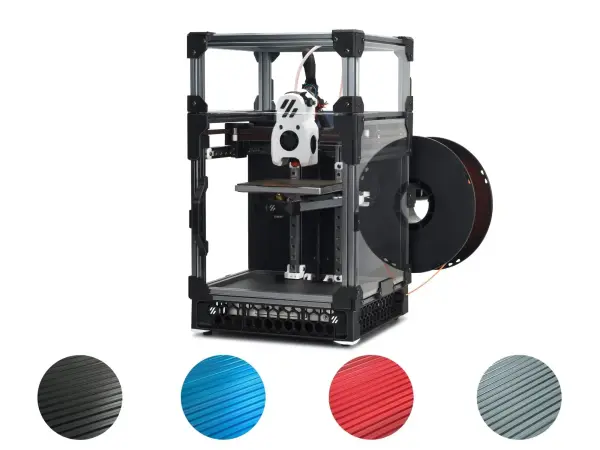

Frame Colours (Options)	– Black, Blue, Red, Space Grey
Stepper Motor	– LDO V0.2 Motor
File Transfer Method	– MicroSD Card
Slicing Software Compatibility	– Cura / SuperSlicer

SHORT LIST OF PARTS INCLUDED IN THE LDO VORON V0.2 PRINTER KIT:
1x LDO Spring Steel Flex Plate (Textured)	1x Brass Heatset Insert Tool
1x Raspberry Pi 4	1x LDO V0.2 Cable Kit
1x A+ Kit (V0.2R1 Upgrade)	1x Aluminum Build Plate, 120x120mm
1x Original Bondtech Drive Gear Kit	1x set of Acrylic enclosure Panels
1x Mornsun Power Supply, 200W, 24V	1x LDO V0 Frame Kit
1x BigTreeTech SKR Pico	1x LDO Stainless Steel Linear Rail Kit
1x E3D Revo Hotend LDO Edition	1x LDO V0.2 Motor Kit
1x Raspberry Pi Heatsink	Fans, heaters, buck converter, hardware, tools, and more!
