TwoTrees TTC-H40 / TTC-H80 CNC & Laser Engraving Machine

Easy Engraving, Efficient Experience — TTC-H40/H80 Can Do It All

The TTC-H40 and TTC-H80 are large-format, dual-function CNC and laser engraving machines built for hobbyists, small businesses, and makers who want to move between wood carving and laser engraving without switching setups. Both models share the same intelligent control system, safety features, and material versatility — the only difference is size. Choose the H40 for a generous all-around workspace, or step up to the H80 for double the length and room to tackle oversized projects.

Choose Your Size

	TTC-H40	TTC-H80
Working Area	39.4in × 39.4in × 4in (1000 × 1000 × 100mm)	78.7in × 39.4in × 4in (2000 × 1000 × 100mm)
Machine Footprint	50.9in × 50.8in × 15.9in (1292.5 × 1290.5 × 404.5mm)	92in × 51.1in × 16.7in (2336 × 1298.5 × 425mm)
Net Weight	38.3kg (~84.4 lbs)	68.2kg (~150.4 lbs)
Best For	Medium to large projects, space-conscious studios	Oversized panels, long signage, ambitious large-scale builds

Both models are built on an aluminum alloy frame with a 300 x 137 x 131mm control box, Nema 23 stepper motors, leadscrew-driven X/Y axes, and linear rail Z-axis motion, delivering up to 1800mm/min travel speed and engraving accuracy up to 0.05mm.

Key Highlights

Large Working Area — Up to 1000 x 1000mm (H40) or 2000 x 1000mm (H80) to handle everything from décor pieces to full-size furniture panels.
One-Step CNC/Laser Switch — A 3.5" intelligent touchscreen lets even first-time users swap between spindle and laser modes in seconds.
300% Efficiency Boost — Optimized motion and control system speeds up carving and engraving workflows.
Multi-Material Compatible — Works with wood, acrylic, metal, carbon fiber, and plastic.
Relief Engraving — Adds real depth and texture for dimensional, sculptural pieces.
Easy Assembly — Simple to set up, disassemble, and store.
Multiple Safety Protections — Spindle power-off, emergency stop, and laser protection keep operation worry-free.
Flexible Power Options — Standard 500W spindle, with an optional 800W trim router and 20W diode laser module.

Features That Make the TTC-H40/H80 Stand Out

Large Working Area

Whether you choose the H40's near-square 1000 x 1000mm bed or the H80's extended 2000 x 1000mm bed, both machines easily handle medium to large projects — from sign boards to full furniture panels — without repositioning your material.

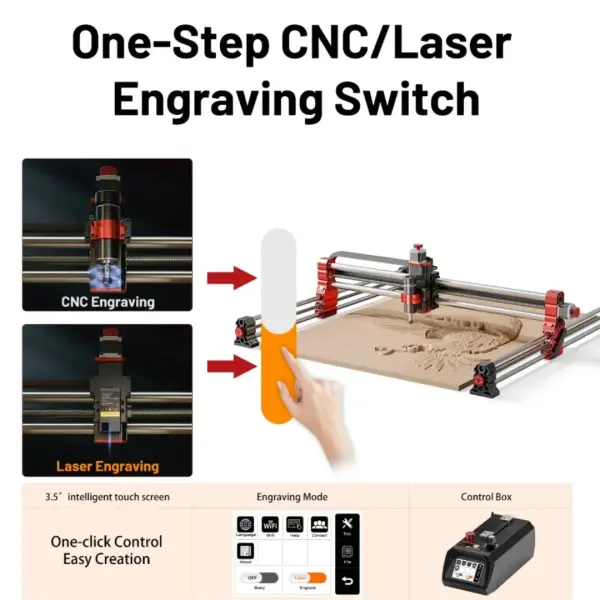

One-Step CNC/Laser Engraving Switch

The built-in 3.5" intelligent touchscreen makes switching between CNC carving and laser engraving effortless, so newcomers can get started quickly without a steep learning curve.

Spindle Power-Off Safety

A dedicated safety system with emergency stop control keeps the spindle protected and operation worry-free.

Relief Engraving

Go beyond flat engraving — add depth and texture for sculptural, dimensional artwork like carved wildlife scenes or detailed portraits.

Multi-Material Compatibility

Designed to meet diverse project needs across wood, acrylic, metal, carbon fiber, and plastic.

Easy Assembly

A straightforward build process makes both machines easy to disassemble and store when not in use.

All-Round Engraving, One-Click Control

Multi-dimensional advantages make engraving simpler and more efficient — unlocking a new realm of engraving and a smoother creative experience overall.

One-Click Control Smart touch controls make complex operations simple. Switch between CNC engraving and laser engraving modes directly from the 3.5" touchscreen and control box — no complicated manual reconfiguration required.

Safe and Worry-Free Multiple layers of protection guard every operation:

Spindle safety lock
Spindle power-off
Emergency stop
Laser protection

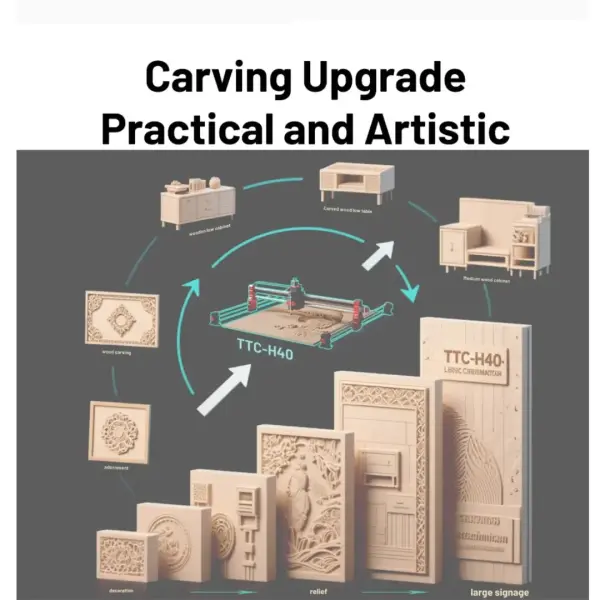

Carving Upgrade: Practical and Artistic

The TTC-H40/H80 series is ideal for creating both functional pieces — like custom furniture and personalized signage — and artistic ones, thanks to its ability to emboss, add depth, and create texture.

Engrave across a wide range of materials — wood, acrylic, metal, carbon fiber, and plastic — for furniture, decorative items, personalized signage, prototypes, and creative sculptural projects.

Powerful Scalability and Compatibility

Flexible Expansion Streamlined, modular design allows for easy upgrades to meet evolving creative needs, with a variety of tool modules and accessories available across both models.

Compatible with Mainstream Software Works seamlessly with popular design platforms, including Carveco Maker, Vectric, Easel-style workflows, and Fusion 360, and runs on GRBL control for smooth, error-free operation — giving you flexibility in how you design before you carve or engrave.

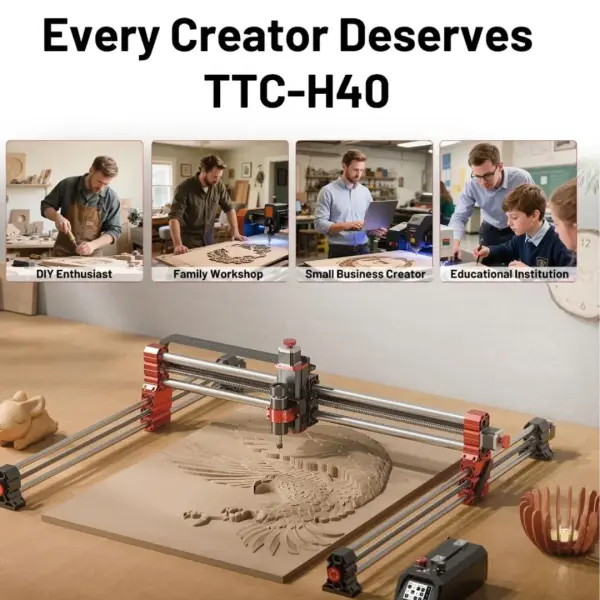

Creativity Without Boundaries

Whether you're a DIY enthusiast, running a family workshop, building a small business, or teaching in an educational setting, the TTC-H40/H80 lineup is built to support unlimited creative potential and turn ideas into finished, professional-quality work.

Who It's For

DIY Enthusiasts — Bring personal projects and hobby builds to life
Family Workshops — A shared creative outlet for makers of all skill levels
Small Business Creators — Produce custom signage, décor, and product lines
Educational Institutions — A hands-on tool for teaching design and fabrication
