Overview

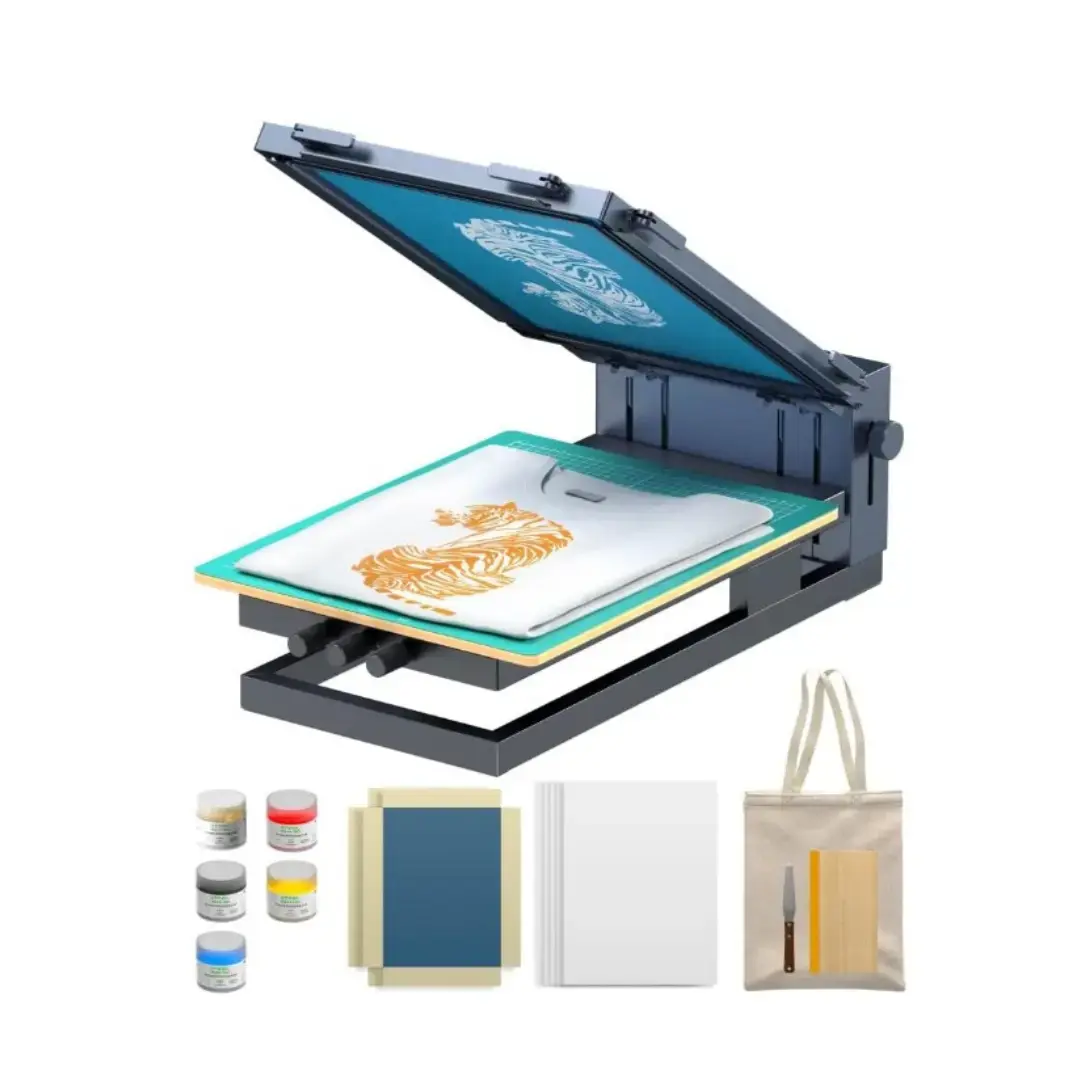

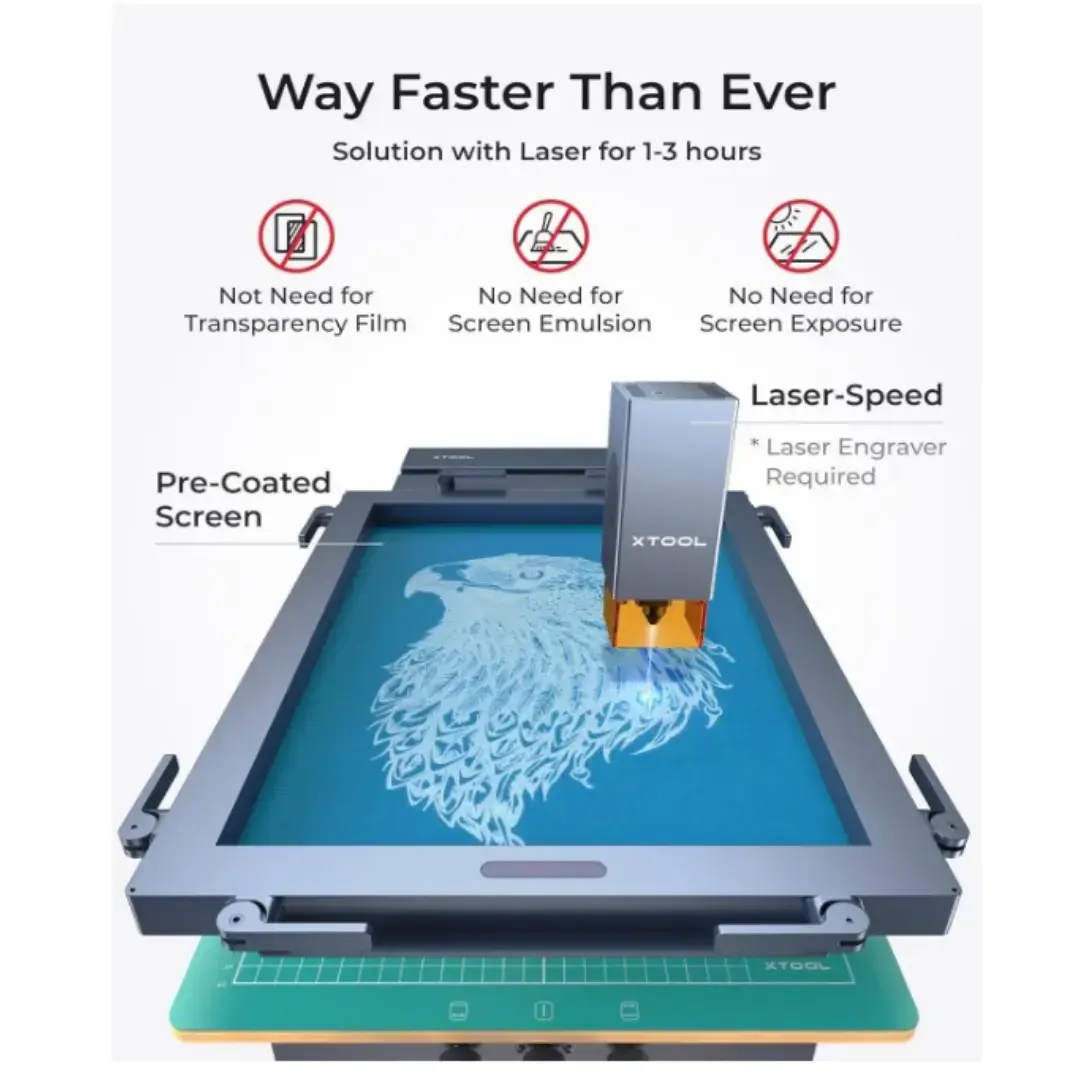

The xTool Screen Printer is a compact screen printing system that replaces the slow, messy stencil-making of traditional methods with laser engraving. Using a compatible xTool laser, you engrave your design directly into a pre-coated screen, then print on paper, fabric, wood, acrylic, metal, glass or ceramics. There is no emulsion, dark room or UV exposure step, so makers can go from idea to finished print in hours instead of days.

Essentials at a Glance

Essential	Details
Product	xTool Screen Printer (Basic Kit for M Series or P/F/S/D Series)
Laser requirement	An xTool laser, sold separately (P2 series needs a riser base)
Compatible lasers	xTool M Series, P Series, F Series and S1
Stencil creation	As little as 1–30 minutes per screen
Precision	Up to 0.01 mm
Screen life	Up to 1,500 prints with the coated screen

Key Features

Fast, Precise Stencils

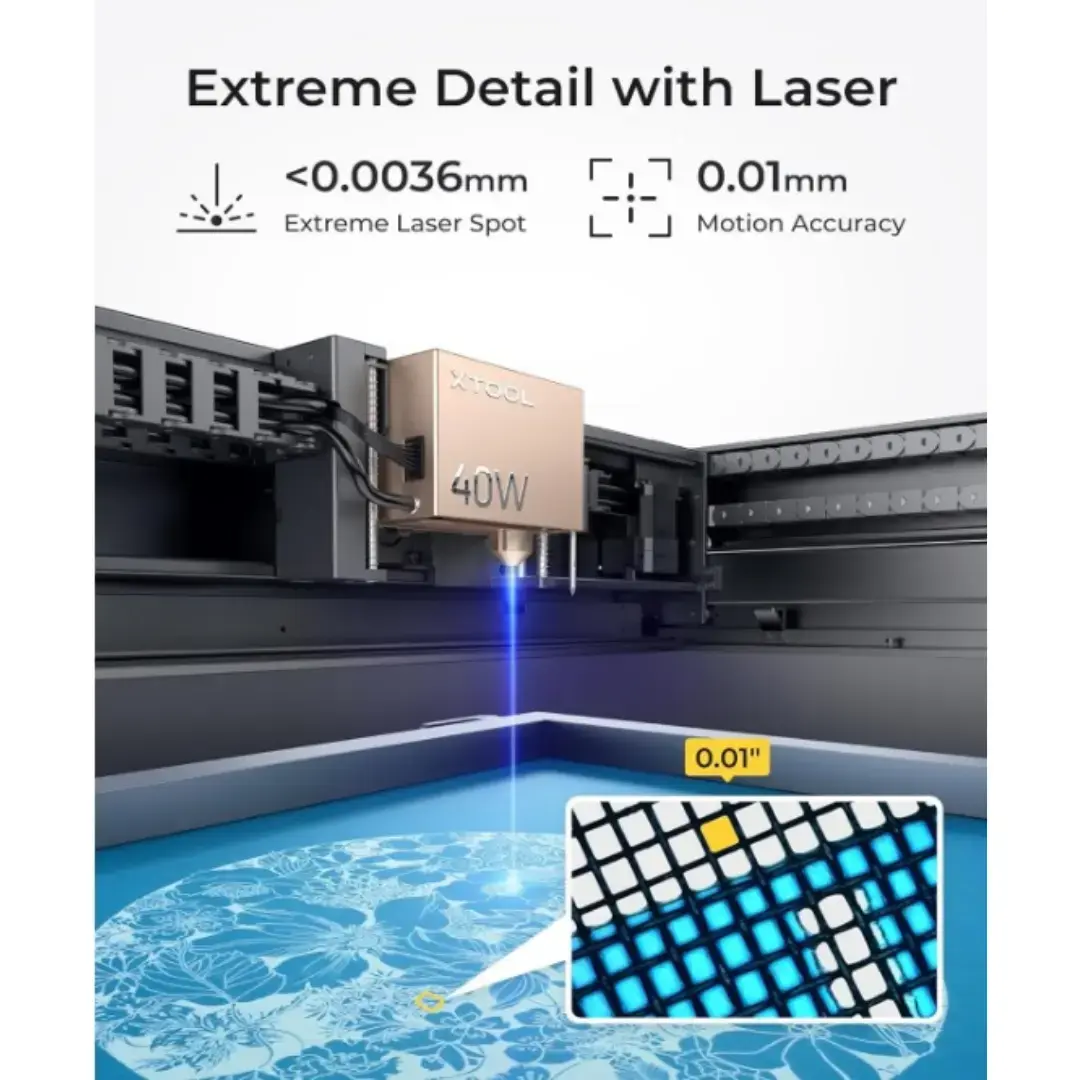

A laser beam finer than a human hair engraves the pre-coated screen, keeping fine detail sharp and avoiding the uneven emulsion of handmade screens. The coated screen is rated for up to 1,500 prints, compared with roughly 200 for typical screens.

Intelligent Software

xTool's software offers AI-assisted design, one-click color separation, automatic CMYK separation and halftone filters, so multi-color designs are easy to prepare.

Designed for Simplicity

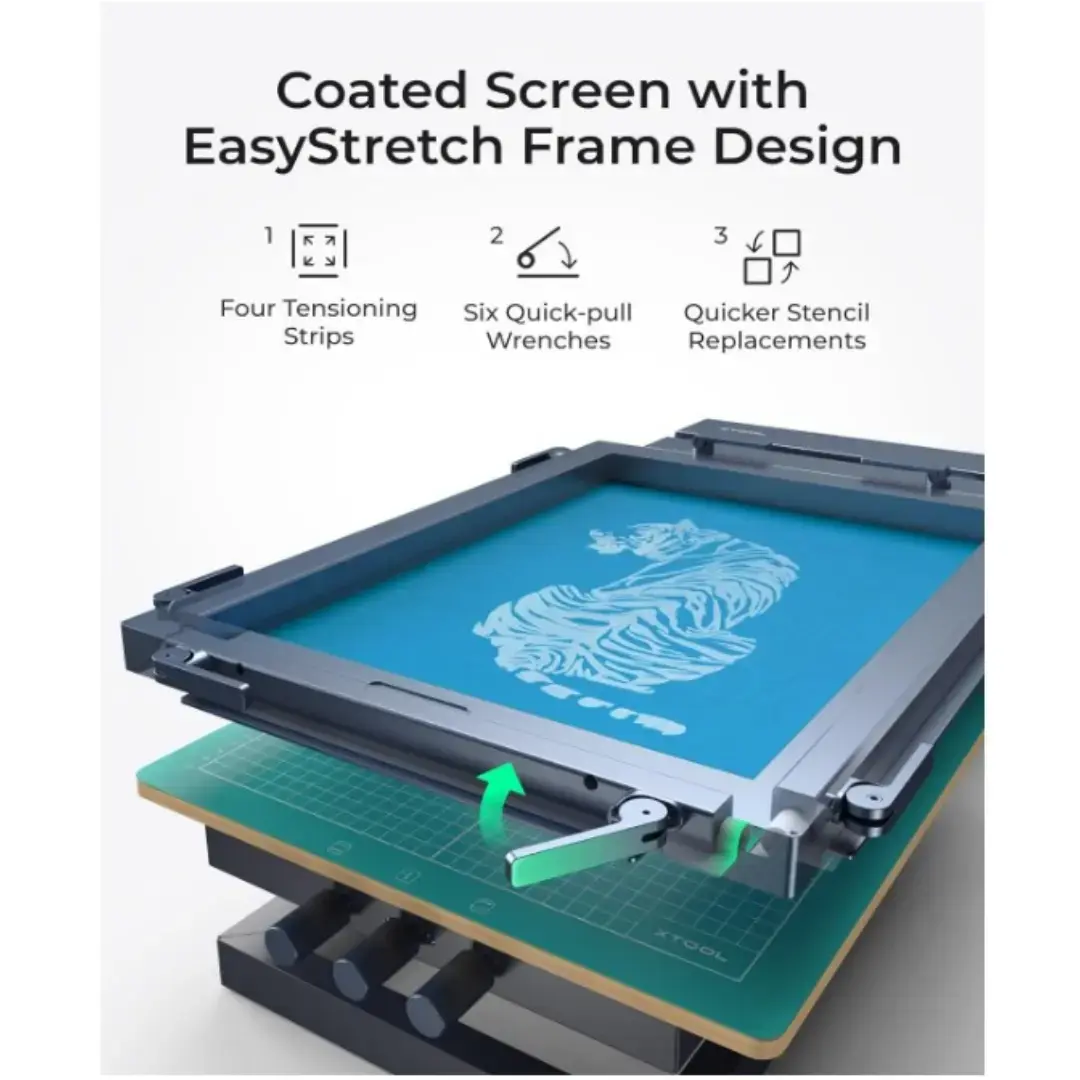

A 30-second EasyStretch frame, a 60° hover hinge that limits ink spills, a magnetic squeegee and 3-axis micro registration make setup and alignment straightforward.

Portable and Compact

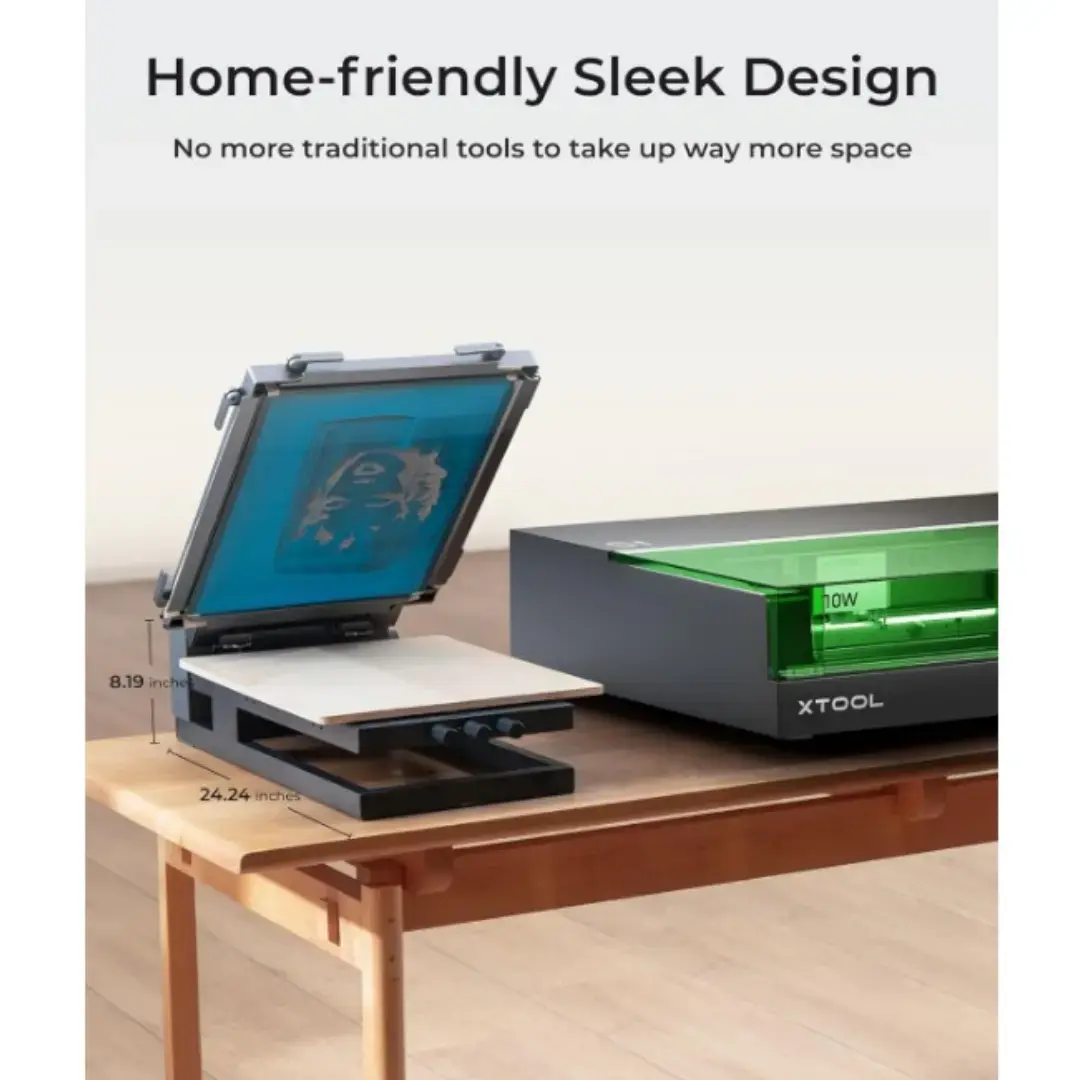

The frame and screen separate, so engraved screens can travel to markets, and the lightweight printer fits on any desk.

Technical Specifications

Specification	Details
Frame size	292 × 406 mm (11.5 × 16 in) for S1 and F1 Ultra; 229 × 305 mm for M1 Ultra

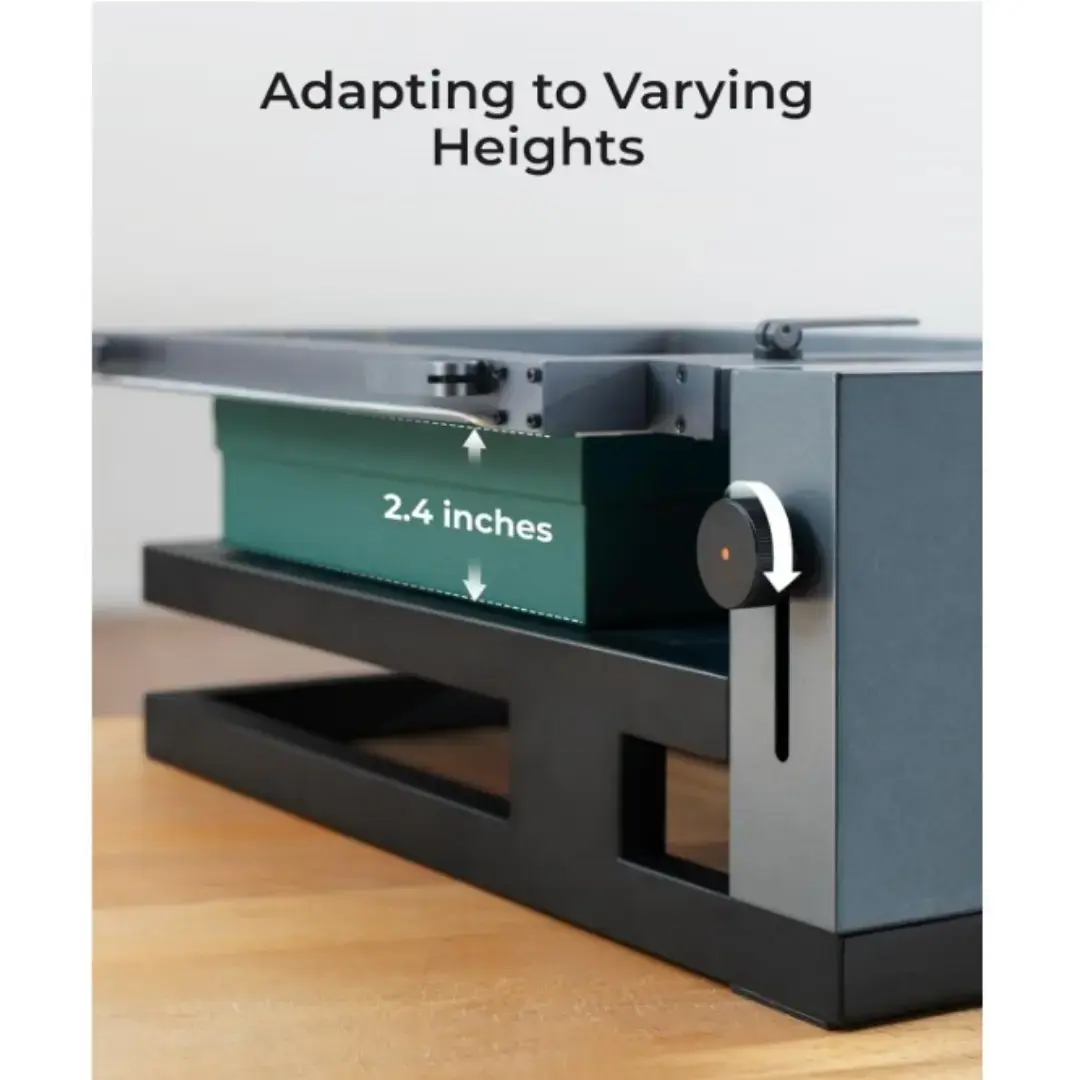

Print height	Z-axis AutoPress prints on objects up to 60 mm thick
Registration	3-axis (X, Y, Z) micro registration for multi-color prints
Software	xTool software with AI design, color and CMYK separation, halftone filters
Printable materials	Paper, fabric, silk, wood, acrylic, metal, glass, ceramics

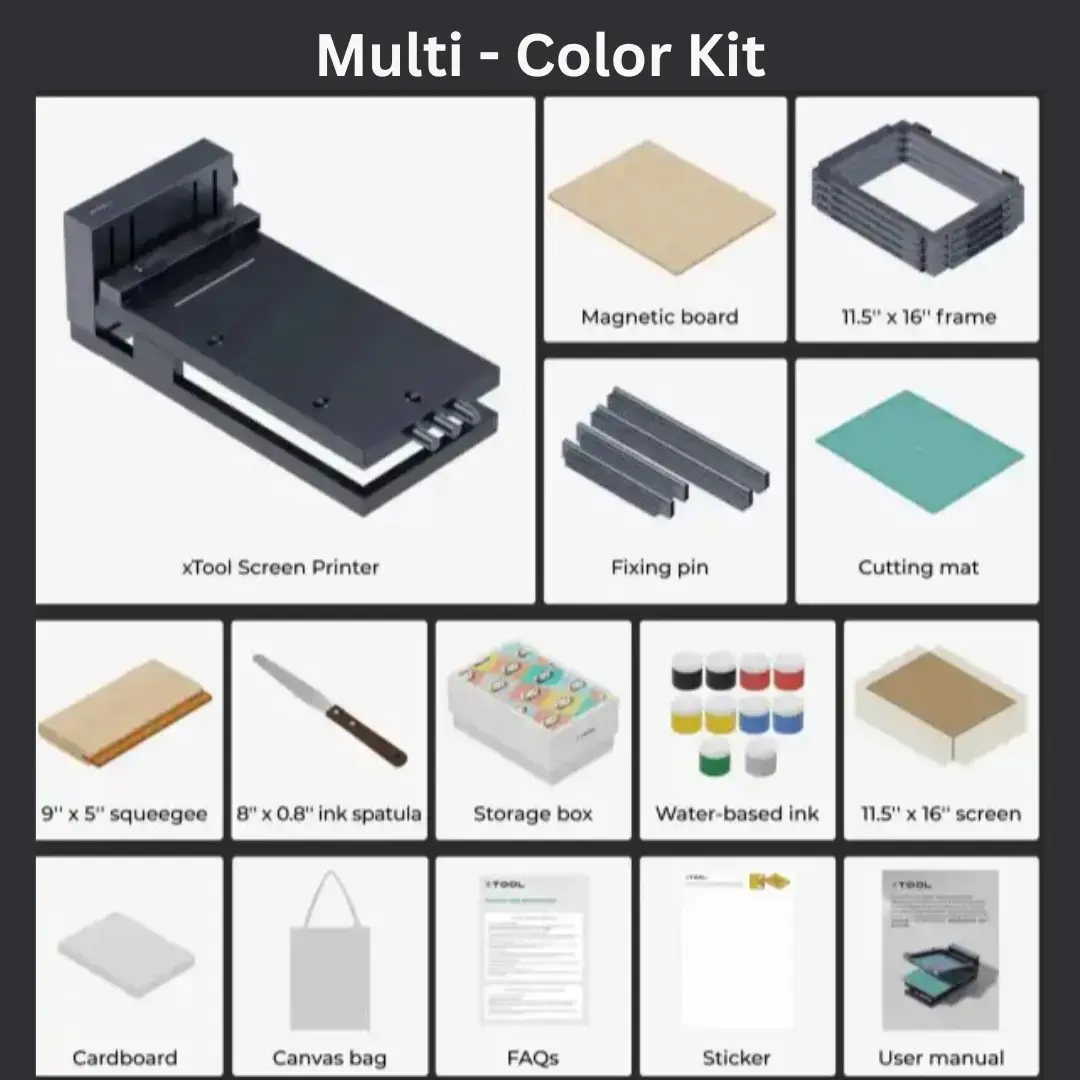

Included in kit	One frame, one screen and one bottle of black ink
